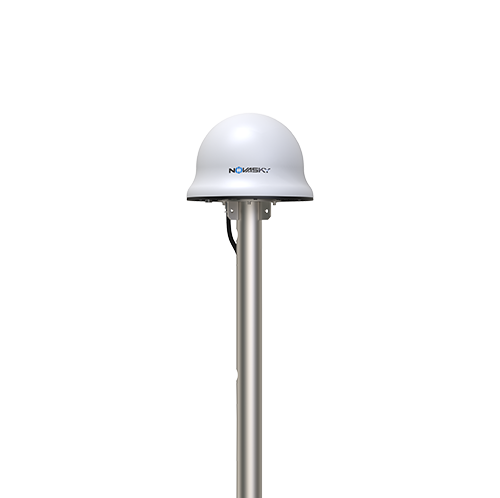

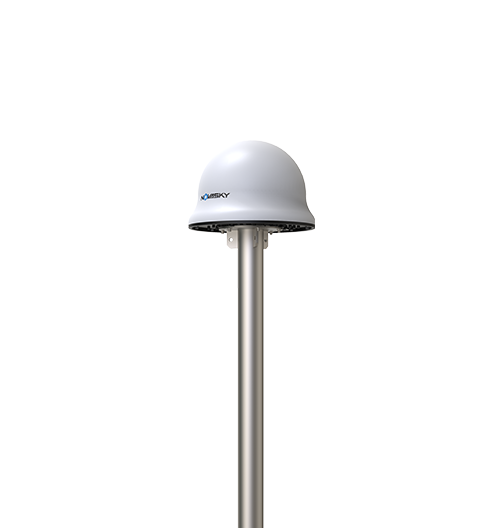

Decoy Active Defense System

SC-SG1000

The active defense system integrates the functions of radio detection and decoy interference, and a single system has both detection and decoy countermeasures. The detection unit of the decoy active defense system detects and recognizes the up and down remote control signals and data image transmission signals of the drone, and realizes the intrusion warning of the drone. At the same time, the system cooperates with the deception and jamming unit to launch simulated satellite navigation signals to deceive the drone in navigation, so that the drone intruding into the defense area is "lost", which makes the drone unable to fly according to the predetermined path, and realizes the no-flying of the drone area control.

Features

  • Easy to Install

    Fixed installation by pole or wall hanging, regular shape and good concealment

  • Green Safety

    Signal transmission power of milliwatt level, minimal impact on personnel and electromagnetic environment

  • Partition Control

    360° omnidirectional azimuth to achieve global coverage

  • Integrated Design

    Signal detection, signal simulation generator, transceiver antenna, control board and other functional units are integrated in one cavity

  • Detection + Deception Design

    The built-in radio detection module can guide the decoy to open, and the deception will not be opened when there is no drone intrusion

Product parameters

Detection Range

Radius≥3km（radiation source 0.1W）

Detection Frequency Band

Drone image transmission/Data transmission/Remote control frequency band

Decoy Frequency Band

Drone navigation band

Detection Angle

Horizontal 360°

Decoy Jamming Radius

≥500m，1000m≤ adjustable

Start Time

≤5min

Protection Class

Ex d IIC T6 Gb
