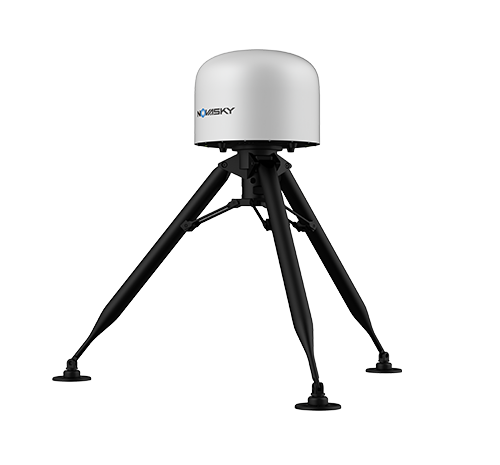

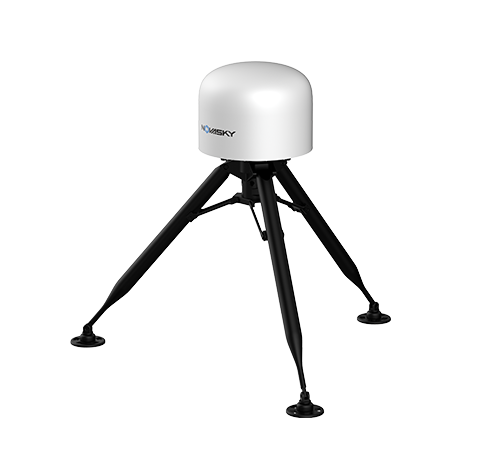

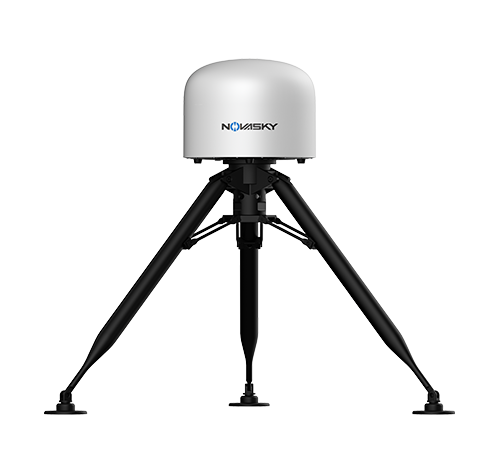

Full-frequency Detection Device

SC-5000+

The full-frequency detection equipment is mainly composed of an array antenna, a radio frequency circuit, a multi-channel synchronous receiver, a GNSS positioning module, etc. The equipment is based on AOA+TDOA composite positioning technology, and has functions such as detection and early warning, model identification, positioning tracking and trajectory playback of drone within and outside the range of multiple stations. Any number of detection devices can be freely expanded according to the scope of the monitoring area.

Features

  • All-weather, All-round

    It is suitable for complex electromagnetic and climatic environments, and is not affected by lightning, fog and haze weather, and night vision

  • Composite Passive Positioning Technology

    It can be used for single-station AOA direction finding and ranging, or multi-point deployment and networking to achieve precise TDOA positioning

  • High Design Maturity

    All-in-one design, no other functional modules, easy and fast deployment

  • Strong Environmental Learning Ability

    It can quickly build a library for the non-signal feature library drone on site, update and expand the existing feature library

  • Full-band Detection

    It can accurately identify the vast majority of consumer drones, WIFI toy machines and other hundreds of models

Product parameters

Detection Signal Type

Drone digital signal, Drone remote control signal, wifi system Drone signal

Detection Frequency Band

Drone image transmission/Data transmission/Remote control frequency band

Single Station Detection Radius

≥5km（Open environment, Droen transmit power 0.1W）

Detection Range

Horizontal 360° omnidirectional

Communication Interface

Ethernet

Power Supply

AC220V±10%，50Hz
